Photonic Universe Grid-Tie Wind Turbine Power Kits

Name: Photonic Universe Grid-Tie Wind Turbine Power Kits
Brand: Photonic Universe
SKU: WINDKIT-1000
Price: 5999.99 GBP
Availability: InStock

by Photonic Universe

£5,999.99

Kit size

1kW Kit — 48 V turbine + 48 V MPPT wind controller + 5.5 kW hybrid inverter + 24 kWh battery bank

2kW Kit — 48 V turbine + 48 V MPPT wind controller + 5.5 kW hybrid inverter + 24 kWh battery bank

3kW Kit — 120 V turbine + 48 V MPPT wind controller (wide-voltage input) + 5.5 kW hybrid inverter + 24 kWh battery bank

Quantity

🔒 Secure Checkout

Fully Encrypted • Payment Protected

Free UK Delivery · 30 Day Easy Returns

Complete grid-tie wind systems for on-site generation, storage and export.

Each kit pairs a high-efficiency wind turbine with an MPPT wind charge controller, a 48 V 5.5 kW hybrid inverter (grid-tie / hybrid / off-grid / UPS), and a 48 V 24 kWh AGM battery bank. Designed for consistent wind sites (coastal, open terrain), with G98/G99-compliant inverter operation and optional remote monitoring

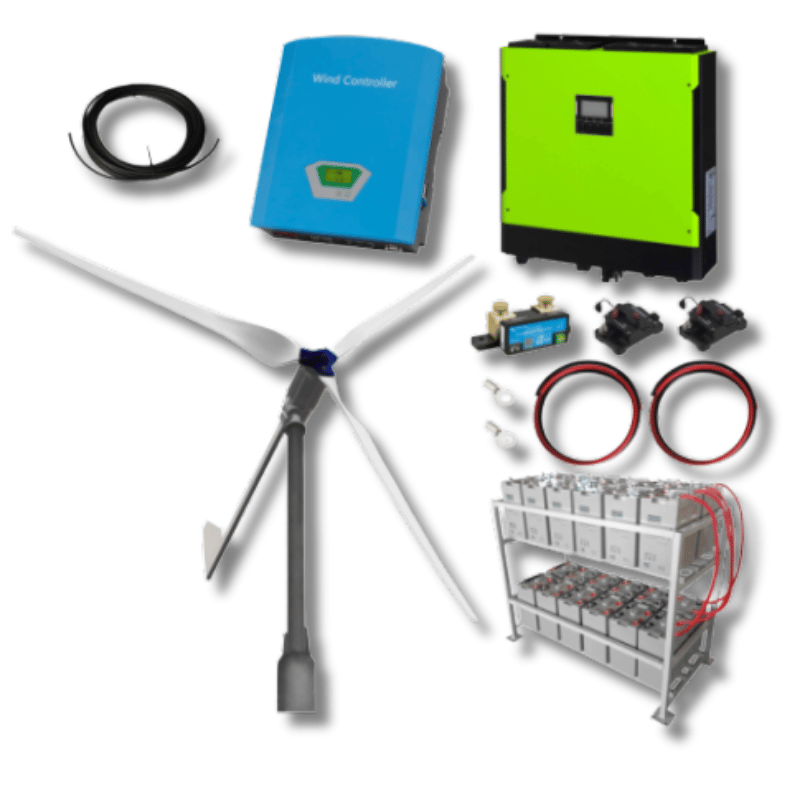

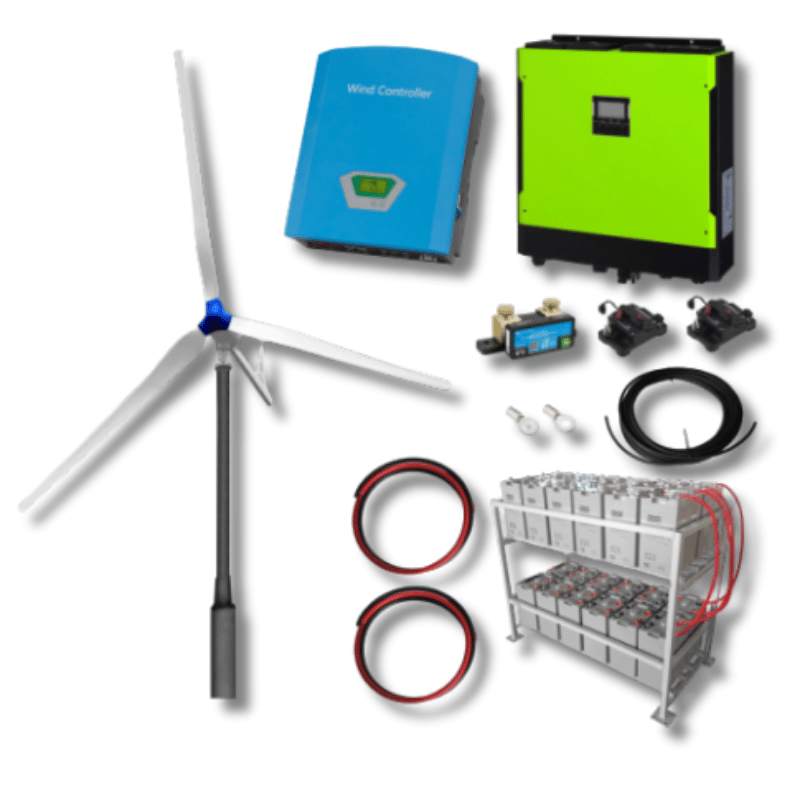

Kit includes (all variants)

Wind turbine (3 blades) with tail-furling safety mechanism
MPPT wind charge controller with LCD and external dump load
Iconica 5.5 kW 48 V hybrid inverter (pure sine, dual-MPPT solar input, mains charger, grid-tie)
48 V 500 Ah AGM battery bank (24 kWh), 24 × 2 V cells with racking & connectors
Battery SmartShunt with Bluetooth measurement
2 × automatic circuit breakers (inverter–battery and controller–battery)
50 m 4 mm² extension cable (turbine to controller)
1 m pairs of 16 mm² and 50 mm² tinned copper battery cables with ring terminals
Loose ring terminals and fixings

(Pole / tower not included.)

Wind turbine — specifications by variant

1 kW (48 V)

Rated power / voltage: 1000 W / 48 V
Rotor diameter: 3.2 m
Start-up / rated wind: 2.5 m/s / 12 m/s
Blades / housing: High-strength nylon composite / die-cast aluminium
Safety: Tail furling; bolts / nuts included
Compliance: CE, GMC, TUV

2 kW (48 V)

Rated power / voltage: 2000 W / 48 V
Rotor diameter: 3.8 m
Start-up / rated wind: 2.5 m/s / 12 m/s
Blades / housing: High-strength nylon composite / die-cast aluminium
Safety: Tail furling; bolts / nuts included
Compliance: CE, GMC, TUV

3 kW (120 V turbine, 48 V system)

Rated power / voltage: 3000 W / 120 V turbine input (to 48 V system via controller)
Rotor diameter: 3.8 m
Start-up / rated wind: 2.5 m/s / 12 m/s
Blades / housing: High-strength nylon composite / die-cast aluminium
Safety: Tail furling; bolts / nuts included
Compliance: CE, GMC, TUV

MPPT wind charge controller (matched per kit)

Common features: MPPT boost tracking, LCD status, turbine brake, external dump load, RS-232 + Windows software for parameter setting (charging/disconnect voltages, start voltage, overcurrent, braking) and data logging.

Electrical:

1 kW kit controller (48 V): Max wind input 1000 W; input 8–64 V; max wind input current 21 A; self-consumption <2 W; controller 300 × 375 × 145 mm, 10 kg; dump load 360 × 80 × 120 mm, 2.8 kg.
3 kW kit controller (48 V): Max wind input 3000 W; input 40–320 V; max wind input current 13 A; self-consumption <5 W; controller 360 × 440 × 195 mm, 15.5 kg; dump load 400 × 390 × 210 mm, 13 kg.
2 kW kit controller (48 V): Matched 2 kW MPPT controller with LCD and dump load; full electrical limits in the downloadable manual (HCM2000-48-48).

Hybrid inverter (Iconica 5.5 kW 48 V) — key specifications

Modes: Grid-tie, Grid-tie with battery backup, Off-grid / UPS
Output: 5500 W / 5500 VA, pure sine, 220–240 V AC; surge 11 kVA
Solar MPPT input: up to 6.5 kW, 120–450 V DC (Voc max 500 V), 13 A per tracker
AC input / charge: max AC input 40 A; AC charging up to 60 A; combined solar + AC charge up to 60 A
Efficiency: inverter peak 93%; solar/AC charger 98%
Operating temp: −10 °C to +40 °C
Enclosure size / weight: 110 × 450 × 445 mm, 16 kg
Compliance / grid: G98/G99-ready; remote monitoring via optional Wi-Fi kit; configurable priorities and time-of-use.

Battery bank — 48 V 24 kWh AGM (500 Ah)

Composition: 24 × 2 V AGM cells with metal plate links and racking
Per-cell (2 V) spec: 500 Ah (10 h rate) / 508 Ah (20 h), max charge 100 A, safety valve, M10 terminals, 242 × 174 × 365 mm, 27 kg each
Assembled bank: 48 V; 24 kWh; temp compensation: −120 mV / °C (cycle), −72 mV / °C (standby); typical racked footprint 1290 × 1140 × 670 mm, ~720 kg
Monitoring: Bluetooth SmartShunt included.

Installation & compliance

Mounting: Turbine requires a suitable metal pole / tower with flange connection (not included). Scaffolding-grade metal poles recommended; timber/plastic poles not advised.
Wiring & protection: Breakers supplied for inverter–battery and controller–battery runs; dump load supplied; 50 m turbine cable; tinned copper battery links included.
Grid connection: Inverter supports G98/G99 compliance; installer to follow DNO application and commissioning requirements.

At a glance:

Choice of 1 kW / 2 kW / 3 kW turbine kits
MPPT wind controllers with LCD, dump load, braking & PC setup
Iconica 5.5 kW hybrid inverter (grid-tie, backup, off-grid)
48 V 24 kWh AGM battery bank with Bluetooth monitoring
Designed for consistent-wind sites; pole/tower not included

Description
Shipping
Why Buy From Us
Documentation

Description

Complete grid-tie wind systems for on-site generation, storage and export.

Kit includes (all variants)

Wind turbine (3 blades) with tail-furling safety mechanism
MPPT wind charge controller with LCD and external dump load
Iconica 5.5 kW 48 V hybrid inverter (pure sine, dual-MPPT solar input, mains charger, grid-tie)
48 V 500 Ah AGM battery bank (24 kWh), 24 × 2 V cells with racking & connectors
Battery SmartShunt with Bluetooth measurement
2 × automatic circuit breakers (inverter–battery and controller–battery)
50 m 4 mm² extension cable (turbine to controller)
1 m pairs of 16 mm² and 50 mm² tinned copper battery cables with ring terminals
Loose ring terminals and fixings

(Pole / tower not included.)

Wind turbine — specifications by variant

1 kW (48 V)

Rated power / voltage: 1000 W / 48 V
Rotor diameter: 3.2 m
Start-up / rated wind: 2.5 m/s / 12 m/s
Blades / housing: High-strength nylon composite / die-cast aluminium
Safety: Tail furling; bolts / nuts included
Compliance: CE, GMC, TUV

2 kW (48 V)

Rated power / voltage: 2000 W / 48 V
Rotor diameter: 3.8 m
Start-up / rated wind: 2.5 m/s / 12 m/s
Blades / housing: High-strength nylon composite / die-cast aluminium
Safety: Tail furling; bolts / nuts included
Compliance: CE, GMC, TUV

3 kW (120 V turbine, 48 V system)

Rated power / voltage: 3000 W / 120 V turbine input (to 48 V system via controller)
Rotor diameter: 3.8 m
Start-up / rated wind: 2.5 m/s / 12 m/s
Blades / housing: High-strength nylon composite / die-cast aluminium
Safety: Tail furling; bolts / nuts included
Compliance: CE, GMC, TUV

MPPT wind charge controller (matched per kit)

Electrical:

1 kW kit controller (48 V): Max wind input 1000 W; input 8–64 V; max wind input current 21 A; self-consumption <2 W; controller 300 × 375 × 145 mm, 10 kg; dump load 360 × 80 × 120 mm, 2.8 kg.
3 kW kit controller (48 V): Max wind input 3000 W; input 40–320 V; max wind input current 13 A; self-consumption <5 W; controller 360 × 440 × 195 mm, 15.5 kg; dump load 400 × 390 × 210 mm, 13 kg.
2 kW kit controller (48 V): Matched 2 kW MPPT controller with LCD and dump load; full electrical limits in the downloadable manual (HCM2000-48-48).

Hybrid inverter (Iconica 5.5 kW 48 V) — key specifications

Modes: Grid-tie, Grid-tie with battery backup, Off-grid / UPS
Output: 5500 W / 5500 VA, pure sine, 220–240 V AC; surge 11 kVA
Solar MPPT input: up to 6.5 kW, 120–450 V DC (Voc max 500 V), 13 A per tracker
AC input / charge: max AC input 40 A; AC charging up to 60 A; combined solar + AC charge up to 60 A
Efficiency: inverter peak 93%; solar/AC charger 98%
Operating temp: −10 °C to +40 °C
Enclosure size / weight: 110 × 450 × 445 mm, 16 kg
Compliance / grid: G98/G99-ready; remote monitoring via optional Wi-Fi kit; configurable priorities and time-of-use.

Battery bank — 48 V 24 kWh AGM (500 Ah)

Composition: 24 × 2 V AGM cells with metal plate links and racking
Per-cell (2 V) spec: 500 Ah (10 h rate) / 508 Ah (20 h), max charge 100 A, safety valve, M10 terminals, 242 × 174 × 365 mm, 27 kg each
Assembled bank: 48 V; 24 kWh; temp compensation: −120 mV / °C (cycle), −72 mV / °C (standby); typical racked footprint 1290 × 1140 × 670 mm, ~720 kg
Monitoring: Bluetooth SmartShunt included.

Installation & compliance

Mounting: Turbine requires a suitable metal pole / tower with flange connection (not included). Scaffolding-grade metal poles recommended; timber/plastic poles not advised.
Wiring & protection: Breakers supplied for inverter–battery and controller–battery runs; dump load supplied; 50 m turbine cable; tinned copper battery links included.
Grid connection: Inverter supports G98/G99 compliance; installer to follow DNO application and commissioning requirements.

At a glance:

Choice of 1 kW / 2 kW / 3 kW turbine kits
MPPT wind controllers with LCD, dump load, braking & PC setup
Iconica 5.5 kW hybrid inverter (grid-tie, backup, off-grid)
48 V 24 kWh AGM battery bank with Bluetooth monitoring
Designed for consistent-wind sites; pole/tower not included
