Beyond its core performance, the MultiPlus-II includes a wide range of advanced features and customizable settings for enhanced versatility, control, and system optimization.

PowerControl:
- Allows you to set a maximum AC input limit, ensuring appliances get priority power while surplus capacity charges the batteries—preventing overloads and tripped breakers (requires Multi Control Panel).
PowerAssist:
- PowerAssist boosts your AC source by instantly adding extra power from the batteries when demand exceeds supply—letting you run heavier loads with a smaller generator or limited shore power, then recharging when demand drops.
Programmable relay:
- The MultiPlus-II includes a programmable relay for functions like automatic generator start/stop, and by default acts as an alarm relay that triggers when critical conditions—such as overheating or low battery voltage—are detected.
Parallel and 3-phase operation capability:
- The MultiPlus-II supports parallel connection of up to six units for greatly increased power, and can also be configured for 3-phase operation using a standard RJ45 UTP connection.
Inbuilt safety protection:
- Provides full protection against short circuits, overload, battery over/undervoltage, overheating, backfeed AC, and excessive input voltage ripple.
WeakAC:
- WeakAC mode allows charging under heavily distorted input voltage, though it increases input current distortion.
BatterySafe mode:
- Prevents battery damage from excessive gassing by automatically limiting voltage rise during high-current, high-voltage charging.
The Storage mode:
- Storage mode lowers float voltage after 24 hours of inactivity to reduce gassing and plate corrosion, with weekly absorption pulses to prevent stratification and sulphation, extending battery life.
Bulk protection:
- Limits bulk charging to 10 hours to prevent overcharging and flag potential system issues like a battery cell short circuit.
Temperature compensation:
- Temperature sensor reduces charging voltage as battery heats, protecting maintenance-free batteries from overcharging and drying out.
Remote monitoring and control:
- Paired with a GX device, the MultiPlus-II can be monitored and controlled locally or remotely via the free VRM app or portal on any phone, tablet, or computer.

Specs

Inverter
Input voltage range	38 - 66 V
Output voltage & frequency	230 VAC ± 2% @ 50Hz ± 0.1% (can be adjusted to 240 VAC @ 60Hz)
Continuous output power at 25°C	3000 VA (i.e., 2400W)
Peak power	5500W
Maximum efficiency	95%
Zero-load power	11W
Charger
AC input voltage range	187 - 265 VAC (45 - 65 Hz)
Charge voltage 'absorption'	57.6V
Charge voltage 'float'	55.2V
Storage mode	52.8V
Charge current house battery	35A
General
Transfer switch	32A
Auxiliary output	Yes (32A)
External AC current sensor (optional)	50A or 100A
Operating temperature range	-40 to +65 °C (fan assisted cooling)
Humidity (non-condensing)	max 95%
Enclosure
Protection category	IP22
Battery connection	M8 bolts
230 VAC connection	Screw terminals 13mm² (6 AWG)
Dimensions	499 mm H x 268 mm W x 141 mm D
Weight	19 kg

Compact 3000va inverter charger for reliable off-grid and backup power systems.

Key functions

Intelligent Features

Specs

Inverter

Charger

General

Enclosure

Ecostride

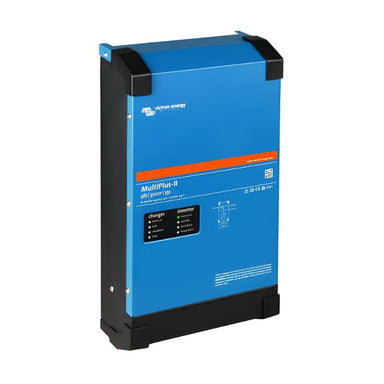

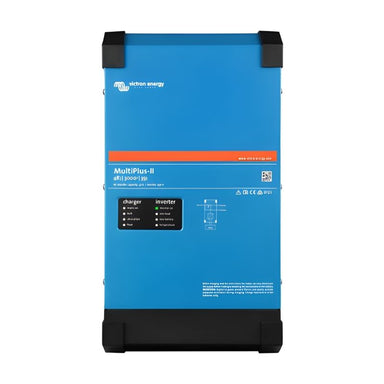

Victron MultiPlus-II Inverter Charger - 48/3000/35-32 230V
