This design allows for easy installation directly in or on top of a rainwater tank. When fitted before the tank, the Combi also provides flexibility in how the outlet pipe is positioned to feed the tank. It can be mounted directly to the tank lid using a supplied seal, effectively acting as a second turret.
The filter is suitable for roof areas up to 450 m² (in accordance with DIN 1986) and can process up to 5.4 m³ of clean water per hour. The height difference between inlet and outlet is 300 mm.
Filtered rainwater can be used for washing machines, toilet flushing, and garden irrigation in domestic, commercial, or public applications. The filter requires cleaning one to two times per year, depending on the level of debris collected.

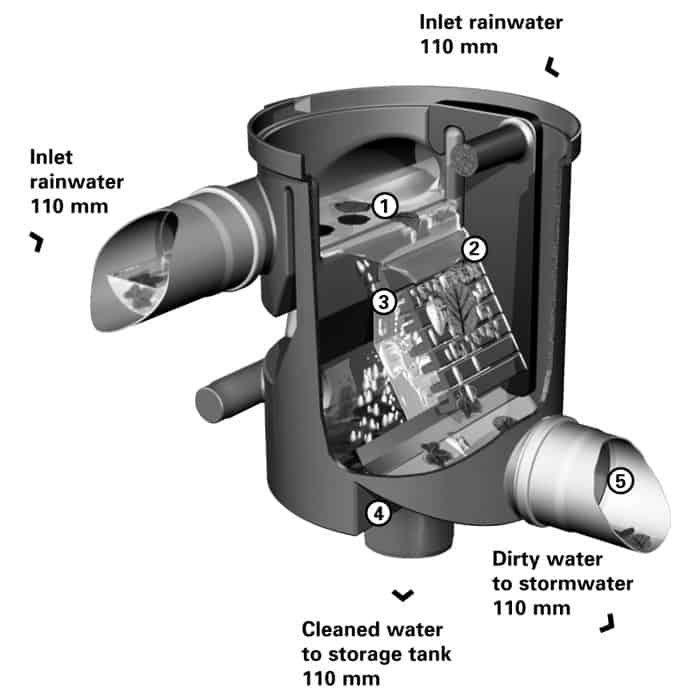

Incoming rainwater collects and spreads evenly across a cascade section.
Larger debris is separated and directed straight to waste.
The remaining water passes through a fine stainless-steel mesh (0.65 mm) that traps smaller particles.
The mesh design allows most debris to wash away automatically, making the system largely self-cleaning.
The filtered water exits through the bottom outlet into the tank.
Wastewater carrying debris exits through a separate outlet.
| Specification | Detail |
|---|---|
| Filter standard | DIN 1989-2, Type C |
| Inlet connections | 2 × DN 100 (110 mm OD) |
| Outlet to tank | DN 100 (110 mm OD) |
| Outlet to sewer | DN 100 (110 mm OD) |

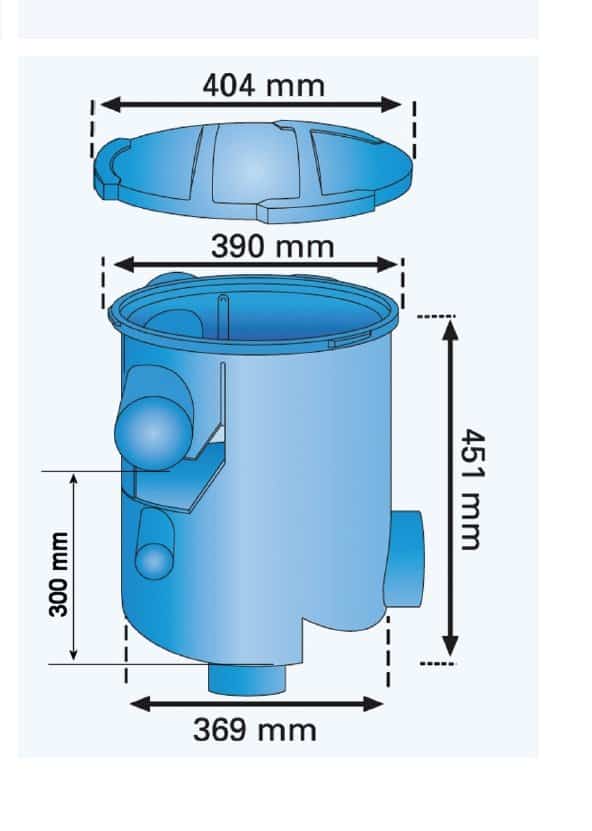

| Height difference (inlet → outlet) | 300 mm |
| Housing material | Polyethylene |
| Filter cartridge | Stainless steel 1.4301 |
| Mesh size | 0.65 mm |
| Cascade insert material | Polyethylene |
| Weight | 6.2 kg |
