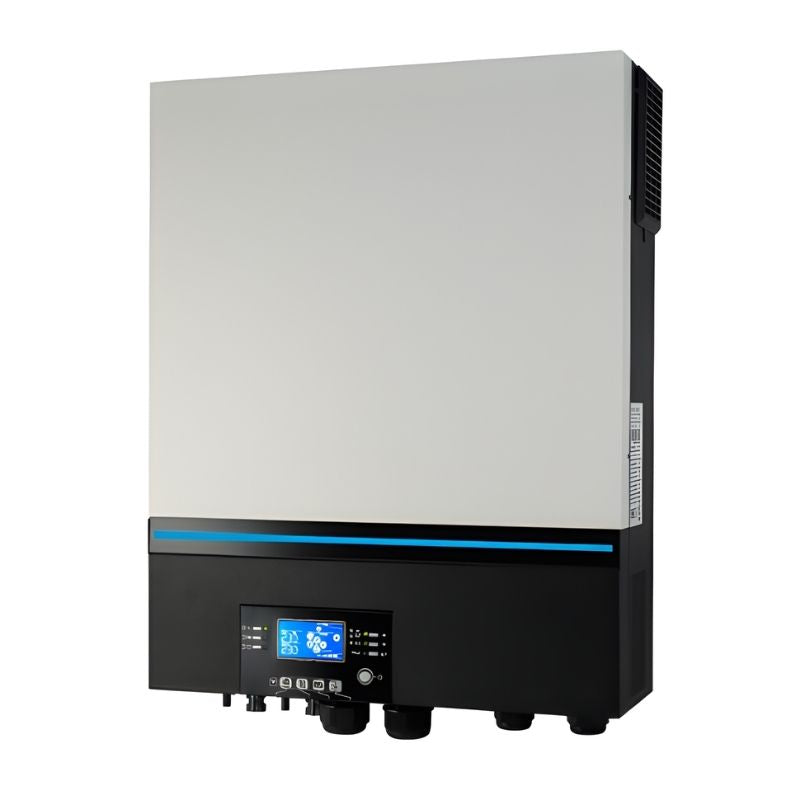

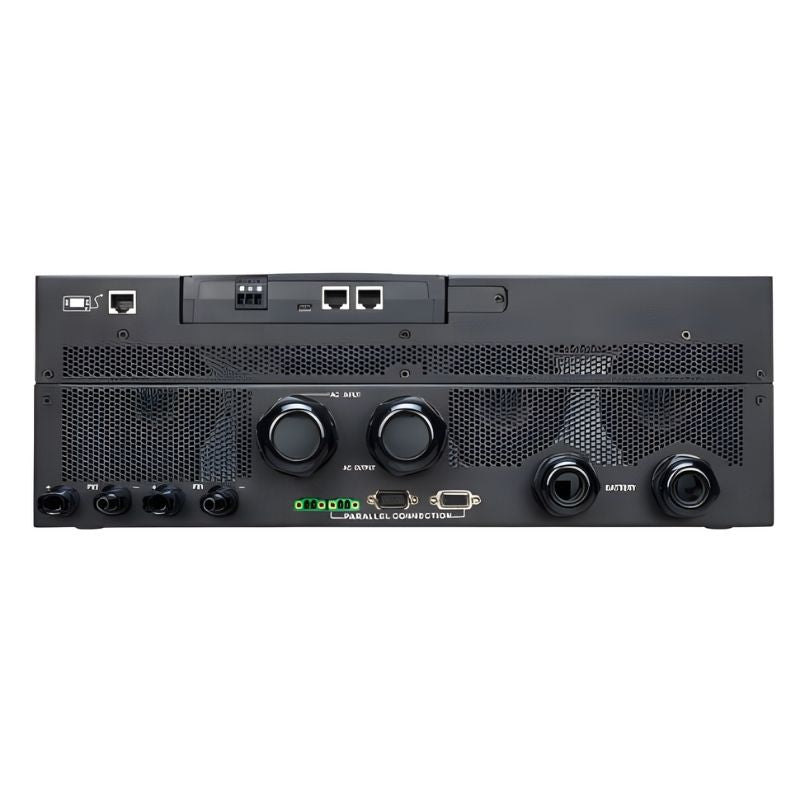

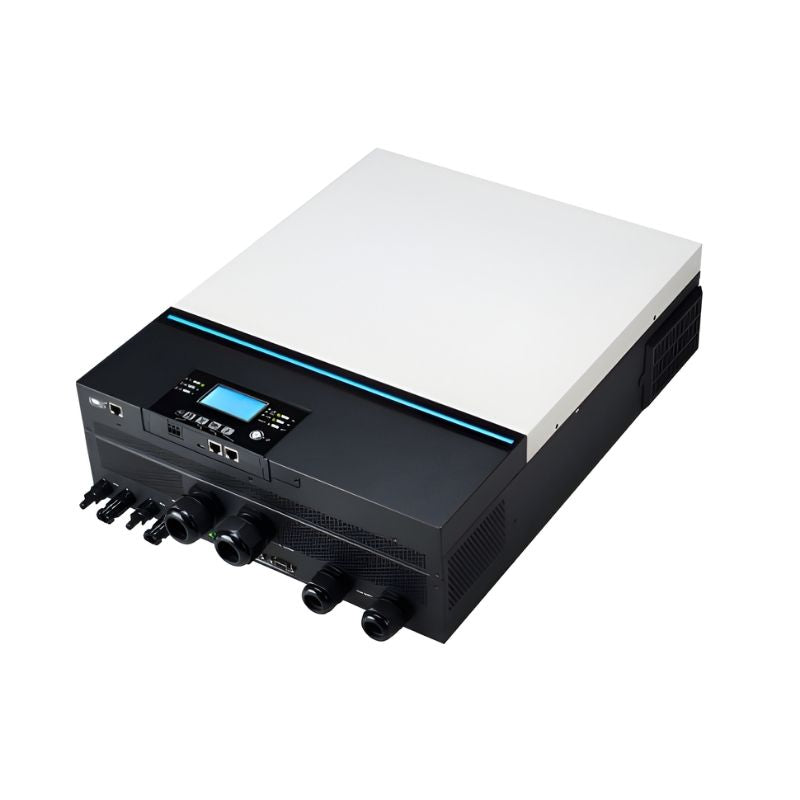

Power large off-grid systems with the Iconica MAX 11000W hybrid inverter, combining a pure sine wave inverter, dual-input MPPT controller, and powerful smart battery charger in one unit. It can use energy from solar, mains, generator, or batteries, and can even run appliances directly from solar without a battery. With full UPS capability and advanced smart settings, it delivers reliable power even in areas with frequent outages.
This hybrid inverter is suitable for 48V flooded, sealed GEL/AGM lead-acid and Lithium batteries with pre-defined charging programs (consult the battery supplier for advice on Lithium battery charging settings). A user-defined battery type with numerous customisable settings is also available for charging other battery types.
If you are unsure whether 11000W is enough for your appliances, please refer to the following table: Table of typical power consumption of domestic appliances.
The Iconica MAX 11000W 48V hybrid inverter boasts an abundance of unique features, providing enhanced functionality over standard inverters. These include:
| Dimension | 147.4 mm x 432.5 mm x 553.6 mm |
| Weight | 18.4 kg |
| Nominal battery voltage | 48V |
| Continuous power output: | 11000W/11000VA (220-240V AC) |
| Surge power | 22000VA |
| Output frequency | 50Hz - 60Hz |
| Output waveform | Pure sine wave |
| Maximum solar input power | 5500W per input (11000W total) |
| Maximum solar input current | 18A per input |
| Maximum open circuit solar input voltage | 500V (open circuit) |
| PV start up voltage | 80V +/- 5V |
| MPPT operating solar voltage | 90V - 450V |
| Maximum solar charging current | 150A |
| Maximum mains AC charging current | 150A |
| Maximum combined charging current | 150A |
| Peak efficiency | 93% |
| Operating temperature | -10°C to 50°C |
*Supplied with USB drive, PC connection cable and PC software CD.*
